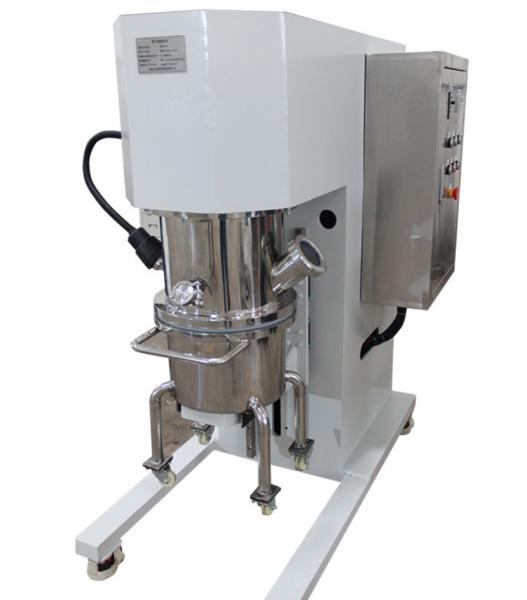

Vacuum Homogenizer Cream Mixer Vacuum Emulsifying Homogenizer Mixer
Machine
This equipment is a set of vacuum deaeration, mixing, homogenizing,
heating, electric control and other functions in one, equipment is
composed by the vacuum homogenizing emulsifying pot, vacuum system,
a lifting system, oil and water pot. Can be used in cosmetic cream,
ointment, honey, paste production
Characteristic
The main boiler capable of automatic lifting, dumping of discharge,
to sure maximum material completely discharging, configuration
homogenizer or homogenizer can be variable frequency speed.
Specific parameter requirements of emulsifier:
| 10L emulsifying pot | Specific parameters |
| Enclosure material/thickness | 304L/3mm |
| Inner Layer Material/Thickness | 316L/3 mm |
| Sandwich material/thickness | 304L/3 mm |
| Matching water phase pot | |
| Enclosure material/thickness | 304L/3mm |
| Inner Layer Material/Thickness | 316L/3 mm |
| Sandwich material/thickness | 304L/3 mm |
| Matching oil phase pot | |
| Enclosure material/thickness | 304L/3mm |
| Inner Layer Material/Thickness | 316L/3 mm |
| Sandwich material/thickness | 304L/3 mm |
| Design capacity | 10L |
| Working capacity | 8L |
| Enclosure material/thickness | 304L/Standard |
| Inner Layer Material/Thickness | 316L/Standard |
| Sandwich material/thickness | 304L/Standard |
| Service life | Over 10 years |
| Homogenizer power | 0.55 KW |
| Homogenizer speed | 2800 |
| Homogenization mode | Upper homogenization |
| Lid opening method | Manual or electric |
| Heating method | Electric heating |
| Discharge method | Inclined discharge |
| Sandwich operating pressure | 0.3 MPa |
| Vacuum degree in the pot | -0.09 MPa |
| Overall dimensions (m) | 0.8*0.55*1.43 |
| Wearing parts | 1 year spare parts. spare parts |
| Warranty Period | More than 1 year |
| Installation and | The supplier is responsible for commissioning |
| Matching water phase pot | |
| Design capacity | 5L |
| Working capacity | 4L |
| Enclosure material/thickness | 304L/Standard |
| Inner Layer Material/Thickness | 316L/Standard |
| Sandwich material/thickness | 304L/Standard |
| Sandwich operating pressure | 0.3 MPa |
| Lid opening method | Movable lid opening |
| Heating method | Electric heating |
| Discharge method | Upper suction material |
| Stirring mode | Down stirring |
| Stirring power | 0.025 KW |
| Stirring speed | 1440r/min |
| Matching oil phase pot | |
| Design capacity | 5L |
| Working capacity | 4L |
| Enclosure material/thickness | 304L/Standard |
| Inner Layer Material/Thickness | 316L/Standard |
| Sandwich material/thickness | 304L/Standard |
| Lid opening method | Movable lid opening |
| Heating method | Electric heating |
| Discharge method | Upper suction material |
| Stirring mode | Upper (lower) stirring |
| Stirring power | 0.025 KW |
| Stirring speed | 1440r/min |
Other specific requirements:
1.The equipment is accompanied by the product manual.
2.The supplier provides equipment assembly drawings and pipeline
installation drawings. When the equipment needs maintenance, the
buyer shall notify the supplier in writing, and the supplier will
arrive within 2 days after receiving the notice to ensure timely
after-sales service.
3.Equipment. Supplier warranty for one year, lifetime maintenance.
4.This annex has the same legal effect as the contract.
5.The inner wall of the pot (316L) requires mirror polishing 300
mesh, equipment size:
6. Various pipelines are required to be made of stainless steel
(316L material is required for the contact material part)
7. Dead weight of 10L emulsifier: about 500Kg
